Create Web ACL

Building the First Firewall

The first step in securing your system is to create a Web Access Control List (Web ACL). This acts as a “checkpoint” where you will later attach security rules and associate it directly with your Backend server’s Application Load Balancer (ALB).

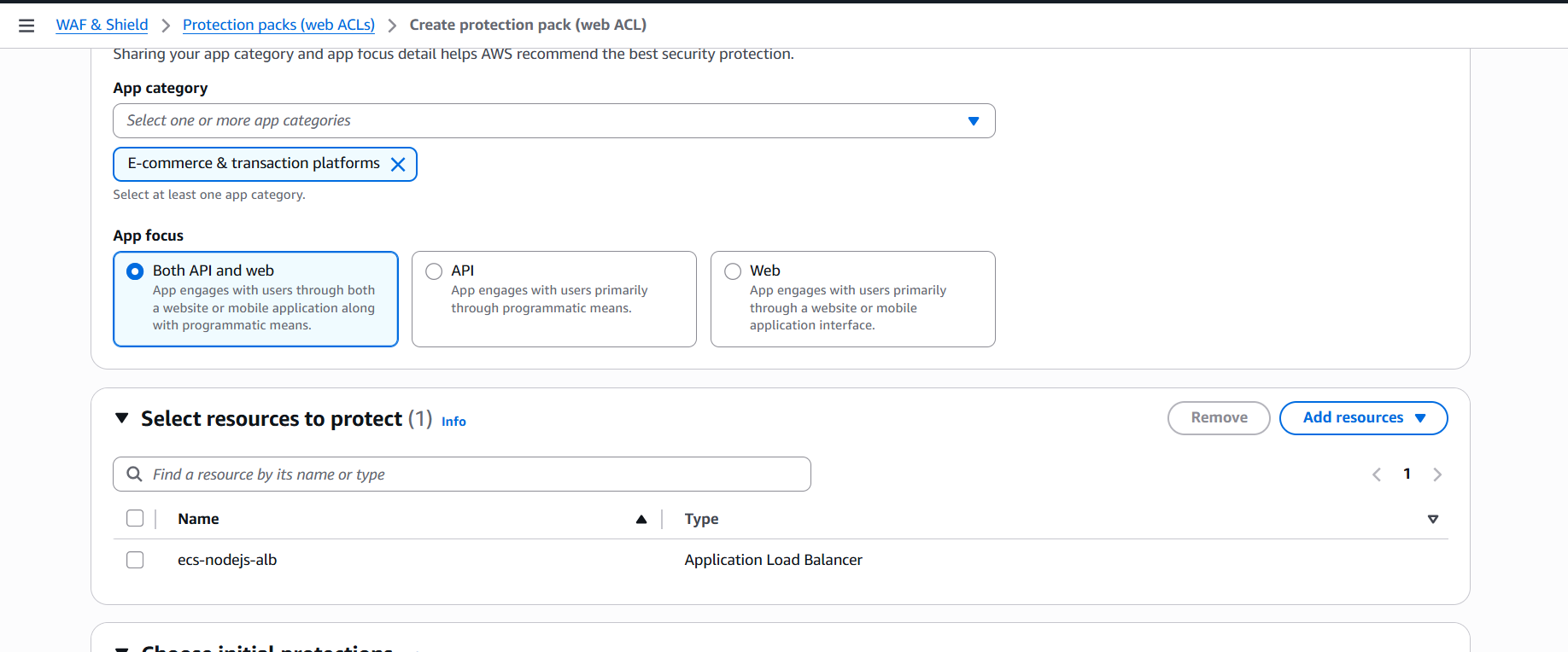

Step 1: Access and Select Resource Type (Regional)

1. Log in to the AWS Management Console and search for the WAF & Shield service.
2. In the left navigation menu, select Web ACLs and click the Create web ACL button.
3. In the Resource type section, select Regional resources (Application Load Balancer).
4. In the Region dropdown right below it, select the exact Region where you previously created your ECS server and ALB.
5. In the Name section, enter a name for your firewall (Example: ecommerce-waf-acl).

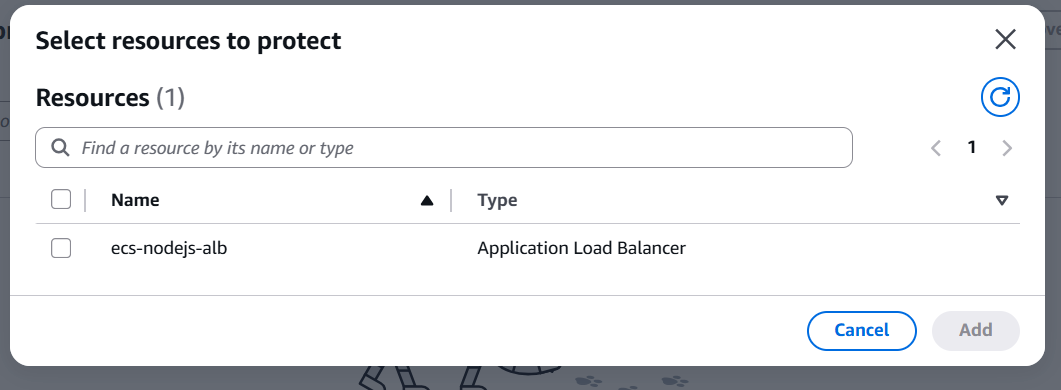

Step 2: Associate with Application Load Balancer

1. Right below the name section, locate the Associated AWS resources section and click the Add AWS resources button.
2. A list of resources will appear. For the resource type, select Application Load Balancer.
3. Find and check the box next to your ALB name (Example: ecs-nodejs-alb).
4. Click Add to save. At this point, the firewall knows exactly which ECS Backend resource it needs to protect.
5. Click Create to proceed to the next screen.
